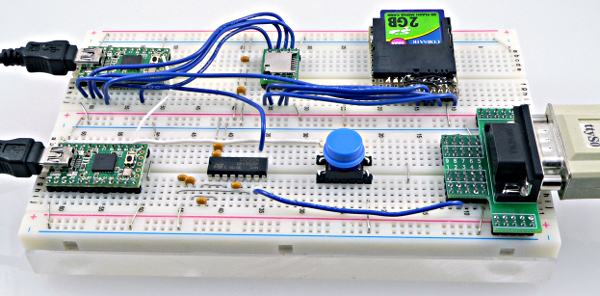

SD / Micro SD

Sat, 05/15/2010 - 20:17 — paul

Comments

Mon, 05/31/2010 - 05:28 — wbowers9000

SD Card Holder

Where did you get the SD card holder? I'm about to buy one from Sparkfun unless I find a better alternative.

William Bowers


Mon, 05/31/2010 - 05:38 — scott_d

Parts List

Paul sent out an email to the dorkbot blabber list a couple of weeks ago with the following parts list. Digikey seems to have everything if you want to put it into the group order:

1 Micro SD Socket HR1941CT-ND
1 3.3 volt reg MCP1700T3302ETTDKR-ND
1 buffer 74LCX125MTCXCT-ND
2 cap, 1uf 399-5090-1-ND
1 resistor, 10k RHM10.0KHCT-ND

This is for the micro SD card reader board. If you were asking about the full size reader, then I'm not sure where he got it.
